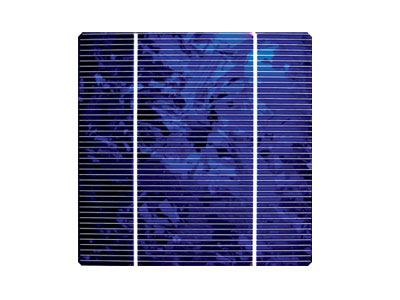

솔라셀    다결정 솔라셀   STP125E/S1 Multicrystalline Silicon Solar Cell · Product Information · Model: STP125E/S1 Dimension (mm*mm,mm): 125*125 Coversion effiency (%): 16 Maximum power Pmax(W): 2.5 Optimum operating voltage Vm(mV): 515 Optimum operating current Im(A): 4.854 Open circuit voltage Voc(mV): 612 Short circuit current Isc(A): 5.308 Price: Parameters:   Model Dimension ( mm*mm,mm) Coversion effiency (%) Maximun power Pmax (W) Optimun operating voltage Vm(mV) Optimun operating current Im(A) Open-circuit voltage Voc(mV) Short-circuit current Isc(A) STP125E/S1 125*125 16.0 2.50 515 4.854 612 5.308 STP125E/A5 125*125 15.8 2.47 512 4.821 610 5.266 STP125E/A4 125*125 15.6 2.44 512 4.760 608 5.183 STP125E/A3 125*125 15.4 2.41 512 4.699 608 5.142 STP125E/A2 125*125 15.2 2.37 510 4.656 605 5.101 STP125E/A1 125*125 15.0 2.34 508 4.613 605 5.060 STP125E/B3 125*125 14.8 2.31 505 4.579 603 5.020 STP125E/B2 125*125 14.6 2.28 502 4.544 603 4.980 STP125E/B1 125*125 14.4 2.25 498 4.517 602 4.941 STP125E/C 125*125 14.0 2.19 493 4.437 602 4.901 STP125E/D 125*125 13.5 2.11 486 4.340 600 4.863 STP125E/E 125*125 13.0 2.03 480 4.231 600 4.824
