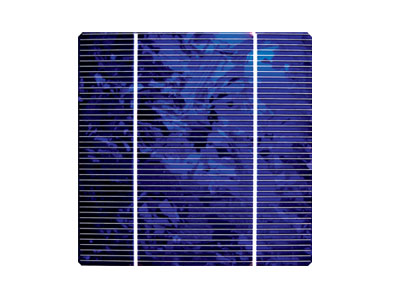

솔라셀    다결정 솔라셀   STP103E/S1 Multicrystalline Silicon Solar Cell · Product Information · Model: STP103E/S1 Dimension (mm*mm,mm): 103*103 Coversion effiency (%): 16.0 Maximum power Pmax(W): 1.70 Optimum operating voltage Vm(mV): 510 Optimum operating current Im(A): 3.328 Open circuit voltage Voc(mV): 610 Short circuit current Isc(A): 3.736 Price: Parameters:   Model Dimension ( mm*mm,mm) Coversion effiency (%) Maximun power Pmax (W) Optimun operating voltage Vm(mV) Optimun operating current Im(A) Open-circuit voltage Voc(mV) Short-circuit current Isc(A) STP103E/S1 103*103 16.0 1.70 510 3.328 610 3.736 STP103E/A5 103*103 15.8 1.68 508 3.299 608 3.691 STP103E/A4 103*103 15.6 1.65 508 3.257 608 3.669 STP103E/A3 103*103 15.4 1.63 505 3.235 605 3.647 STP103E/A2 103*103 15.2 1.61 505 3.193 605 3.626 STP103E/A1 103*103 15.0 1.59 502 3.169 603 3.604 STP103E/B3 103*103 14.8 1.57 500 3.140 603 3.583 STP103E/B2 103*103 14.6 1.55 495 3.129 600 3.561 STP103E/B1 103*103 14.4 1.53 493 3.098 600 3.540 STP103E/C 103*103 14.0 1.48 487 3.049 597 3.519 STP103E/D 103*103 13.5 1.43 480 2.983 595 3.498 STP103E/E 103*103 13.0 1.38 475 2.903 590 3.477
