솔라셀    단결정 솔라셀   STP103S/U4

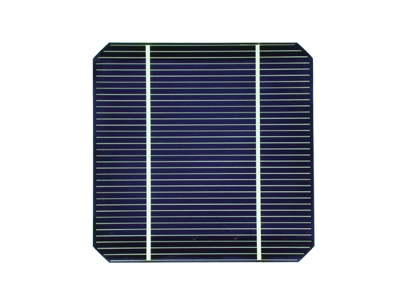

Monocrystalline Sillicon Solar Cell


· Product Information ·

Model: STP103S/U4
Dimension (mm*mm,mm): 103*103,Ø135
Coversion effiency (%): 17.6
Maximum power Pmax(W): 1.85
Optimum operating voltage Vm(mV): 513
Optimum operating current Im(A): 3.618
Open circuit voltage Voc(mV): 622
Short circuit current Isc(A): 3.758
Price:
Parameters:
Model
Dimension
( mm*mm,mm)

Coversion effiency
(%)

Maximun power
Pmax (W)
Optimun operating voltage
Vm(mV)
Optimun operating current
Im(A)
Open-circuit voltage
Voc(mV)
Short-circuit current
Isc(A)
STP103S/U4
103*103,ø135
17.6
1.85
513
3.618
622
3.758
STP103S/U3
103*103,ø135
17.4
1.83
511
3.582
622
3.736
STP103S/U2
103*103,ø135
17.2
1.80
509
3.547
621
3.713
STP103S/U1
103*103,ø135
17.0
1.78
509
3.512
621
3.691
STP103S/S5
103*103,ø135
16.8
1.76
508
3.477
619
3.669
STP103S/S4
103*103,ø135
16.6
1.74
507
3.442
618
3.647
STP103S/S3
103*103,ø135
16.4
1.72
505
3.408
615
3.626
STP103S/S2
103*103,ø135
16.2
1.70
504
3.375
615
3.604
STP103S/S1
103*103,ø135
16.0
1.68
504
3.341
612
3.583
STP103S/A5
103*103,ø135
15.8
1.66
502
3.308
610
3.561
STP103S/A4
103*103,ø135
15.6
1.64
500
3.275
608
3.540
STP103S/A3
103*103,ø135
15.4
1.62
500
3.243
605
3.519
STP103S/A2
103*103,ø135
15.2
1.59
498
3.211
600
3.498
STP103S/A1
103*103,ø135
15.0
1.57
495
3.179
598
3.477
